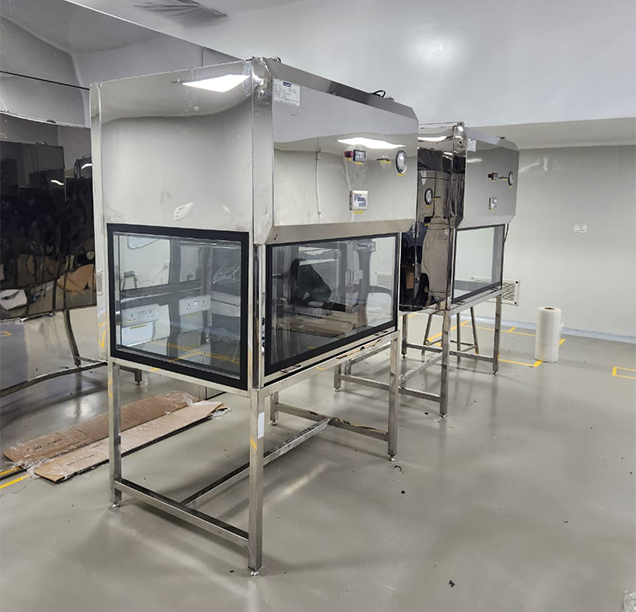

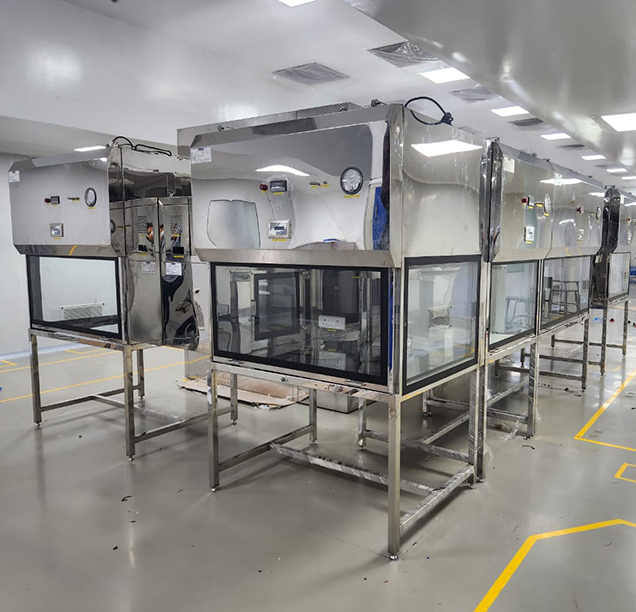

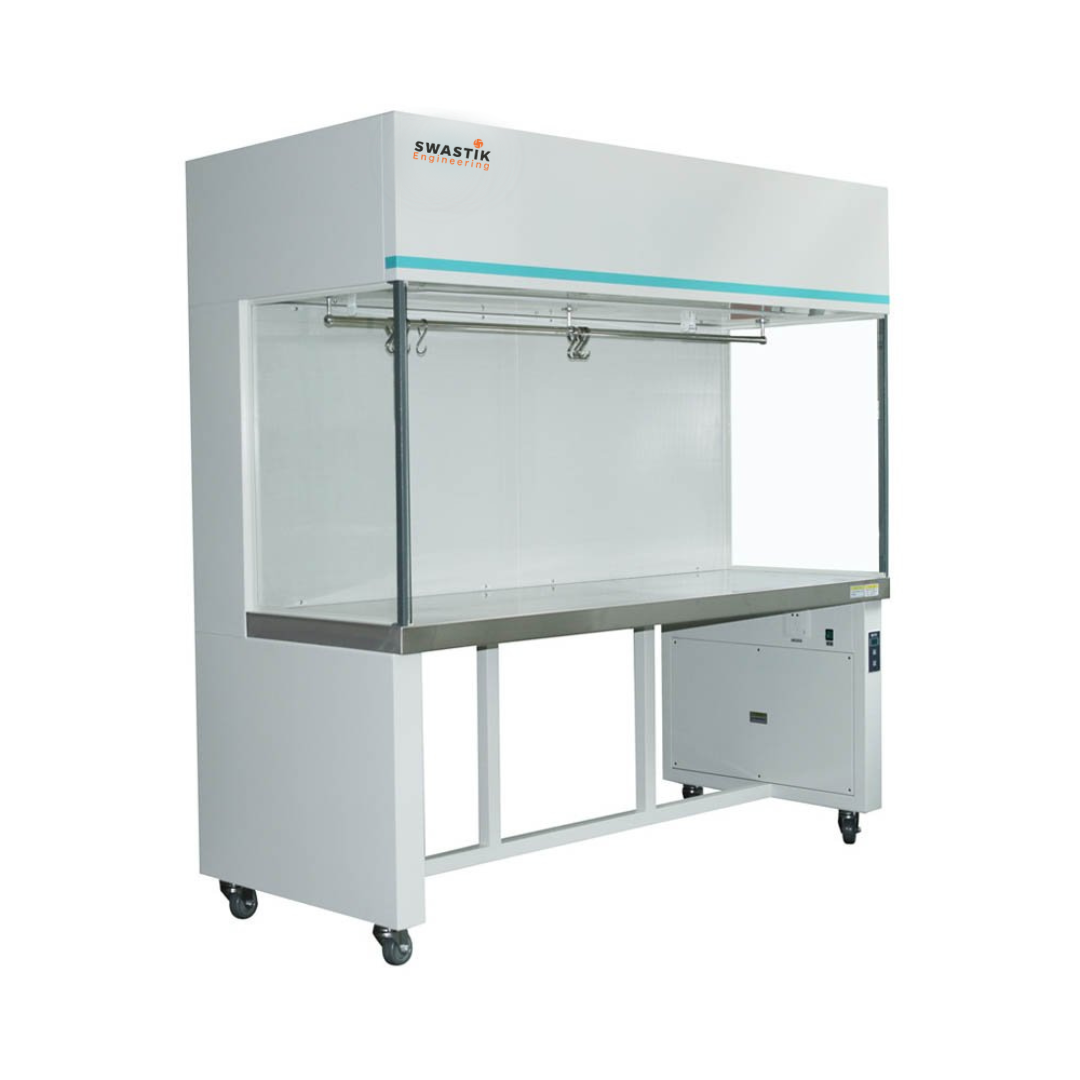

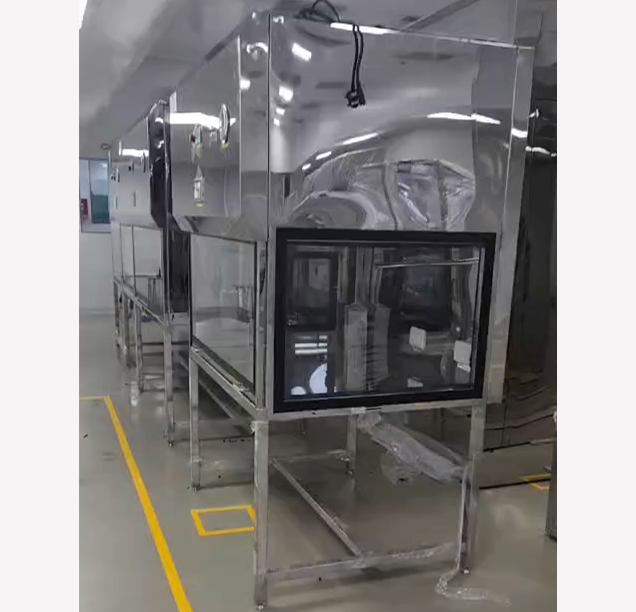

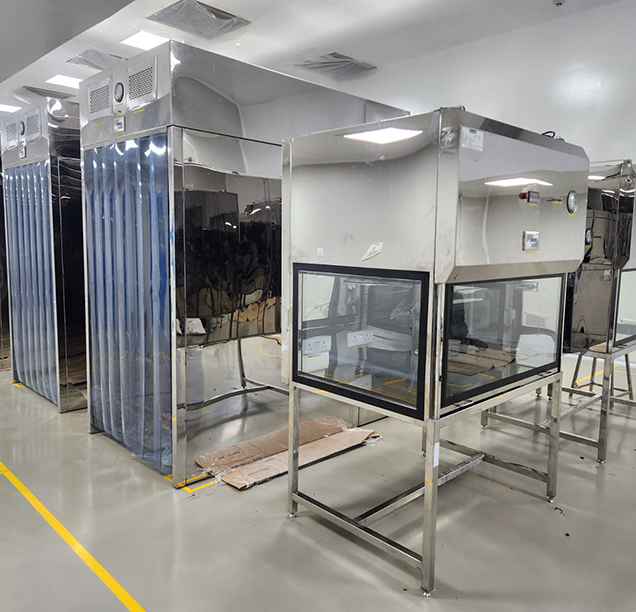

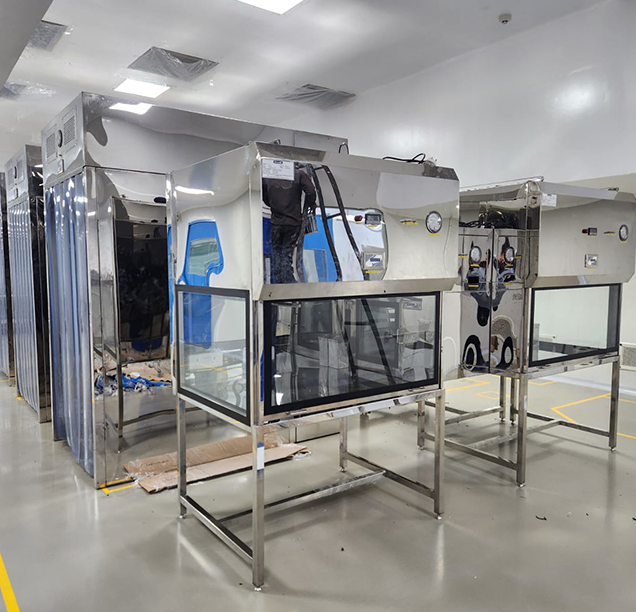

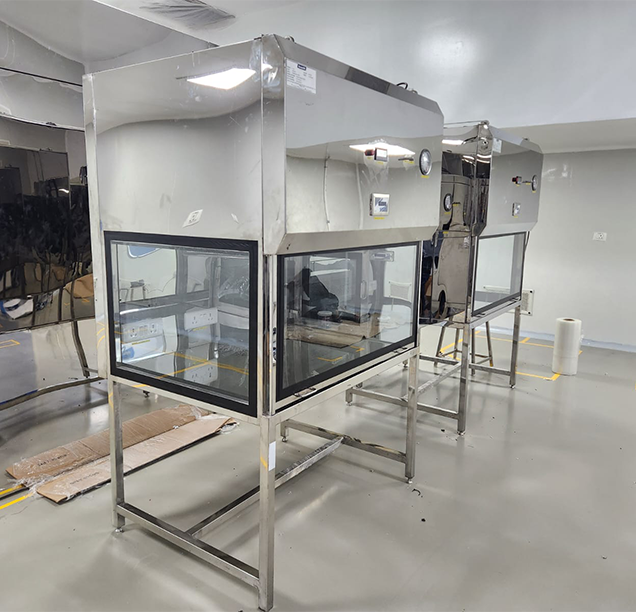

We are one of the leading Vertical Laminar Air Flow manufacturer and supplier in India. Our vertical laminar air flow unit offers vertical directional flow and material retention exceeding 0.5 microns. It is a microprocessor-controlled system with an enclosure that provides a workplace free of particles. A blower directs air through a HEPA filter and down vertically to the surface of the workstation. Transparent side windows with reinforced glass improve visibility and light. Small objects inside the cabinet can be used conveniently thanks to the waterproofing connection on the side panel. The work area, which is bounded by stainless steel side panels and a front sliding sash, is protected from product damage by the vertical laminar air flow cabinet.
The Vertical Laminar Air Flow unit is made of thick board that has been sunmica or epoxy coated mild steel. The work table's thick board is covered in either S. S. or sunmica at the top. There will be a table top available as an optional accessory. A silastic sealant is used to encapsulate all joints. Thick sheets of clear acrylic are offered as side panels.
The device has a pre-filter installed and is designed to pass through a high-efficiency HEPA filter with a rating of 99.997% or higher with heated, DOP, retaining all airborne particles of size: 0.3 micron and larger. The motor and blower assembly are dynamically and statically balanced using a versatile machine. In order to reduce vibration, blowers are installed on vibration isolation mounts. Fluorescent lights installed in the container provide lighting for the workspace. The working table's height offers a relaxing "Sit Down" working position that allows operation to run on a 220/230 volt AC source.
A vertical laminar airflow uses a HEPA filter with 99.995% efficiency to remove particles as small as 0.3 microns. Additionally, a washable polyester prefilter captures larger dust particles. The airflow velocity average is between 0.3 and 0.5 m/s to ensure consistent cleanliness. The work surface is set at a comfortable height of 750 mm. Moreover, the front window is made of 5mm toughened glass for UV protection. The UV lamp emits at 253.7 nm for effective sterilisation while an energy-efficient 12W LED lamp gives ample illumination. The body is made from cold-rolled steel with an antibacterial coating and the work table is crafted from durable 304 steel steel. Besides, an LCD offers convenient control and noise levels remain below 65dB. The internal workspace measures 940x560x545 mm, with external dimensions of 1040x660x1770 mm. The package has a gross weight of 150 kg.
This system is used in laboratories, healthcare, and industrial settings. Tasks like tissue culture, sample preparation, and media plate assembly involve the use of air flow systems. They maintain contamination-free conditions in pharmaceutical industries for preparing drugs. Moreover, microbiology labs use them for culturing microorganisms. Vertical laminar airflow unit is used in environments with limited space as the top-to-bottom airflow ensures efficient removal of contaminants while protecting both the workspace and the user.
Pre-filters are used to pull in ambient air, which is then introduced into the work area by HEPA filters. The work zone's average speed is kept within 0.4 and 0.5 metres per second. According to US FED STD 209 E, the work zone's air quality is superior than class 3.5 (100).
The vertical laminar air flow cabinet unit is made to offer a high level of protection for process goods in labs and manufacturing facilities. There are many important applications in the fields of medicine, pharmaceuticals, manufacturing, chemistry, nuclear power, and microelectronics needs for an ultra-clean working environment that is free of biological and particle pollution. It works well in laboratory settings when product protection is necessary. Small size conserves valuable lab space. It includes a dynamic pressure box without a divider and an ultra-thin filter. Working with lab equipment inside the workspace is possible due to the larger area.
Known as one of the top Vertical Laminar Air Flow manufacturer and supplier, our offered Vertical Laminar Flow cabinets are highly appreciated for their low noise and wide range of applications. They are created using cutting-edge technology, and they can also be created to the specifications supplied by our clients. Contact us to get best solutions as per your requirement.
