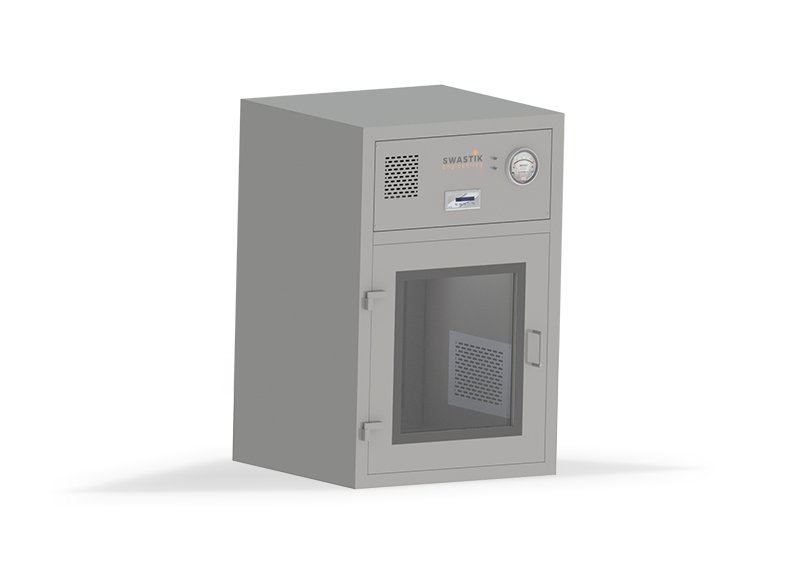

Dynamic Pass Box Manufacturer

We are leading Dynamic Pass Box Manufacturer and supplier in India. We are renowned for offering a wide range of cleanroom equipment that are of the finest quality and accuracy. We provide a dynamic pass box that helps keep pollutants out of cleanrooms and other locations. It is used to move object from an unregulated environment to a regulated environment. It functions as an airlock. It comes in a variety of types, including cascade, sink, and bubble. An interlock guard system is installed on both sides of the dynamic pass box. To avoid cross-pollution, an interlock monitor system prevents the inlet and outlet of pass box from being opened at the same time.

Cleanroom Dynamic Pass Box

Our Cleanroom dynamic pass box is appropriate to keep away infection among different classified areas and to hold the integrity of the product and process whilst transferring material. These cleanroom pass boxes are designed in conformation with the latest ISO Standards and industrial regulations. They are used for transferring the material through the managed environment to different categorized places to avoid move infection.

Dynamic Pass Box Construction

A dynamic pass box can be specified as a cubicle placed between two categorized areas or substance moving with HEPA filtered air. The dynamic box has linked doors on either side that prevent the air from becoming contaminated. By doing this, contamination of the environment under observation during material transfer is avoided. The door is opened and closed by the magnetic lock whenever the button is pressed. The opening and closing of the door is regulated by a UV light of the dynamic box. The door is closed when the UV light is switched on, and opens whenever it is turned off. Our offered dynamic pass boxes are utilized in the pharma segment to move items between locations while maintaining class.

Dynamic Pass Box Working Principle

Our dynamic pass box works similar to laminar air flow system. This pass box is filled with clean air, which also prevents contaminants from entering. Its dual-sided interlocking doors restrict the spread of contamination of the system area. A cleanroom dynamic pass box is built using high-grade stainless steel to ensure sturdiness and cleanliness. It is geared up with HEPA filters to preserve the air quality in the box. The dynamic pass box working principle entails the transfer of materials through the pass box through the interlocking doors, which saves both doorways from being open simultaneously and, as a consequence, reduces the risks of contamination. The pass box machine is built to GMP criteria and contains a recirculated filtration system. Our Dynamic Pass Boxes are made in accordance with the strictest design guidelines and provide you a variety of pass box options based on the confinement level and material movement between different clean rooms. We also offer them for regions that are flame-proof.

Dynamic Pass Box Uses

Our offered dynamic pass box has wide usage in all many indutrial and commercial sectors. Here are some of the sectors listed wherein our dynamic pass box is used

  • Medical Manufacturing
  • Vaccine Manufacturing
  • Pharmaceutical Industry
  • Chemical Research Lab
  • Automotive Industry
  • Electronic Industry
  • Space Research Facilities
  • Food Processing Industry
  • Cosmetics

    Dynamic Pass Box Installation

    The proper Dynamic Pass Box installation is important to ensure its efficient operation. The installation procedure involves several key steps.

  • Site Assessment: Conduct a thorough assessment of the installation site to determine the main region for the pass box, ensuring it is located among regions with specific cleanliness levels.
  • Structural Preparation: Prepare the wall structure where the pass box could be established, ensuring it's the suitable size and properly strengthened to help the weight of the unit.
  • Electrical and Air Supply Connections: Install the necessary electric wiring and air supply connections, together with the power supply for the airflow materials and the interlocking mechanism.
  • Mounting the Pass Box: Carefully mount the pass box into the prepared starting, making sure it's securely constant and well aligned.
  • Sealing and Insulation: Seal any gaps across the pass box to prevent air leaks, and insulate the encircling region to keep temperature and humidity management.
  • Testing and Calibration: Perform thorough testing and calibration of the pass box, inclusive of the interlocking doors, airflow materials, and filtration performance, to ensure it meets the performance standards

    Operation of Dynamic Pass Box

    Integrating pass box dynamic into your cleanroom layout not only improves cleanliness levels but also boosts basic operational efficiency. By streamlining material transfer procedures and reducing the risks of contamination, dynamic pass boxes contribute to a more effective and compliant working environment.

    Preventive Maintenance of Dynamic Pass Box

    To ensure the smooth operation and best performance of your cleanroom dynamic pass box, regular inspection and preventive maintenance is essential. This consists of cleaning the indoor surfaces, changing filters as wished, and examining the door interlocking materials for any troubles. By following these tips of preventive maintenance of dynamic passbox, you may prolong the lifespan of the cleanroom equipment and keep its effectiveness in infection control.

    Why should you buy our Dynamic Pass Box?

    There are many Dynamic Pass Box manufacturer and suppliers are available in India. But Swastik is recognized as one of the reputed cleanroom and laboratory equipment manufacturer. Some of the features are given as below.

  • Rigid and rust-proof production of electro-galvanized metal body sheets.
  • Abrasion-resistant Mat Finishing metallic body.
  • HEPA filtering device and uniform laminar flow provide a class-100 contamination-free workplace.
  • Easy to clean chrome steel base.
  • The glass panel door gives a clear view of the internal chamber.
  • The face speed of HEPA is adjustable from 90 ± 20% FPM.
  • The illumination system permits uninterrupted drift of smooth air.
  • Easy to put in and adaptable to existing centers.

    Contact the Best Dynamic Pass Box Manufacturer

    Are you searching for best dynamic pass box manufacturer in India? Than Swastik should be your top choice. Our dynamic pass box is manufactured using best quality raw material. It is one of the most durable and efficient pass box offered by us. We are manufacturing all type of pass box variations that are in demand in the market.The entire process of making a clean room box is supervised by a team of experts who ensure that the finished product is superior in quality, free of manufacturing flaws, and suitable for use by sectors including the pharmaceutical, food, chemical, electronics, and semi-conductor device manufacturing industries. Customer can also directly contact us with their specifications and requirements to get custom set of dynamic pass box. We offer best product solution, consultation, support and services.

  • Dynamic Pass Box Specification

    Model SEDP150 SEDP200 SEDP300
    Design type Dynamic Dynamic Dynamic
    Cleanliness level Class 100 Class 100 Class 100
    Internal Dimension (in mm) 450L x 450W x 450H 610L x 610W x 610H 910L x 910W x 910H
    Outer Dimension (in mm) 570L x 510W x 950H 730L x 670W x 1100H 1030L x 970W x 1410H
    MOC Stainless steel 304
    Illumination LED tube light
    Air system Motor-blower with suspension arrangement
    Filters Pre filter (95% down to 5 micron)
    HEPA filter (99.97%)
    Protected by SS grills
    Door Two side doors
    Glass window
    SS handles & SS hinges
    Electromagnetic Interlocking system
    Standard Fittings UV light
    Light indicators for door
    SS Handles & SS hinges
    On / Off Switch for blower
    Power supply 220 Volts / 50 Hz
    Optional MOC SS 316 / 316 L
    Differential Pressure Gauge
    DOP Test Port
    Flange
    Test certificates
    Calibration certificate
    Mechanical door interlocking
    Door buzzer/UV light hour meter
